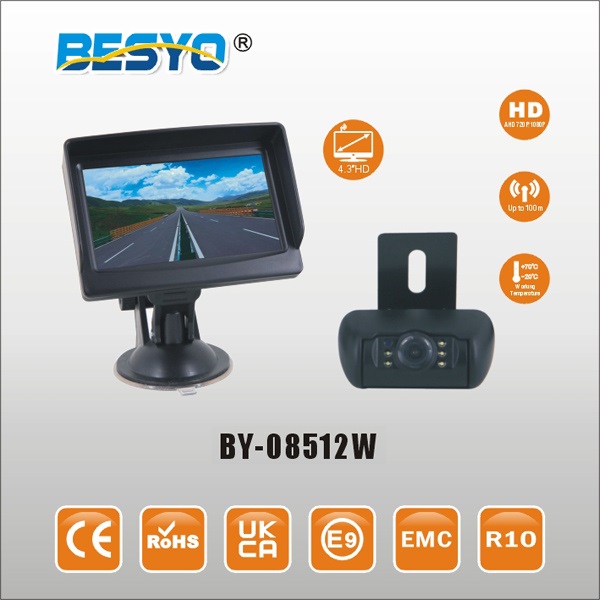

4.3''  2.4GHz Wireless Camera with Color LCD Monitor

Specification

2.4G Wireless monitor:

4.3 inch digital panel

Aspect ratio:16:9 image                Resolution:800*R.G.B*480

Backlight: LED,500cd/m²             Contrast: 1200:1

AV input: 1 channel 2.4G wireless video signal iuput

2.4G transmission distance: 50M in open area

2.4G frequency point: 2370 ~ 2510 MHzMHZ

Receiving Sensitivity: -85dBm         Shockproof level: 4G

Power supply: DC12~24V                Power consumption: ＜5W

Working temperature: -20℃～+70℃    Storage temperature: -30℃～+80℃

Size: 115mm*78mm*38mm           Bracket: Suction bracket

Wireless camera:

Image sensor: 1/3'' CMOS

Car: Bus, truck, trailer                 Resolution: 600TV Lines

Light Sensor, 5PCS LED turn on automatically in darkness with parking guide line

Waterproof: IP69K                       Lens angle: 120 wide angle

Emission power: 24DBm              2.4G transmission distance: 50M in open area

2.4G frequency point: 2370 ~ 2510 MHzMHZ

Power supply: DC12~24V             Power consumption: ＜3W

Working temperature: -20℃～+70℃     Storage temperature: -30℃～+80℃

Size: 65mm*58mm*43mm (EU and Global market)

         210mm*43mm*43mm (USA type bracket)
