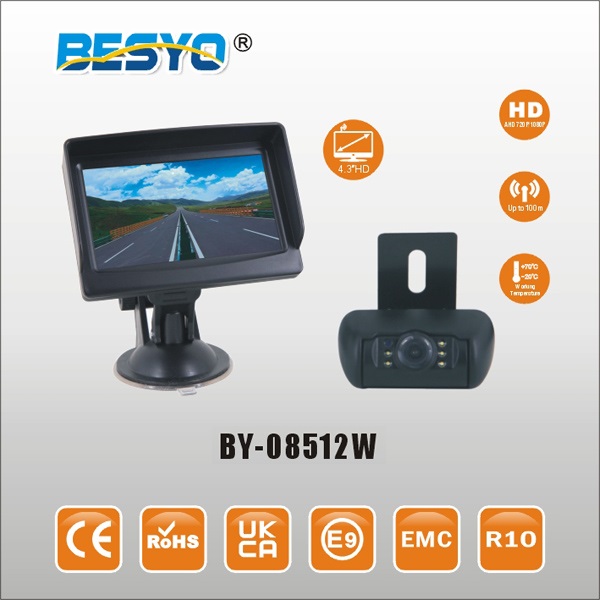

4.3'' 2.4GHz Wireless Camera with Color LCD Monitor
4.3'' Wireless monitor:
Resolution:800*R.G.B*480
Backlight: LED,500cd/m² , Contrast: 1200:1
AV input: 1 channel 2.4G wireless video signal iuput

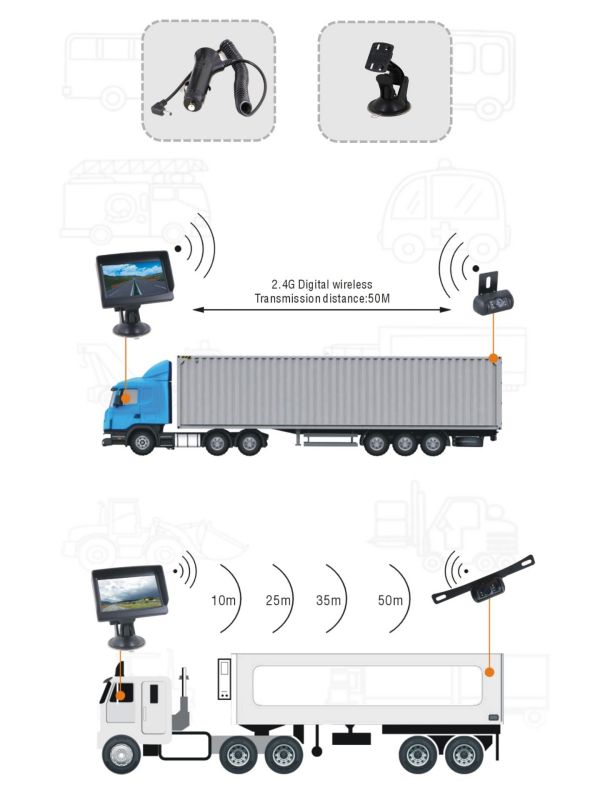

2.4G transmission distance: 50M in open area
Power supply: DC12~24V
Wireless CMOS camera:
Resolution: 600TV Lines
Light Sensor, 5PCS LED turn on automatically in darkness with parking guide line
Waterproof: IP69K
Lens angle: 120 wide angle
Emission power: 24DBm
2.4G transmission distance: 50M in open area
2.4G frequency point: 2370 ~ 2510 MHzMHZ
Power supply: DC12~24V
Power consumption: ＜3W
4.3'' 2.4GHz Wireless Camera with Color LCD Monitor
Specification
2.4G Wireless monitor:
4.3 inch digital panel
Aspect ratio:16:9 image Resolution:800*R.G.B*480
Backlight: LED,500cd/m² Contrast: 1200:1
AV input: 1 channel 2.4G wireless video signal iuput
2.4G transmission distance: 50M in open area
2.4G frequency point: 2370 ~ 2510 MHzMHZ
Receiving Sensitivity: -85dBm Shockproof level: 4G
Power supply: DC12~24V Power consumption: ＜5W
Working temperature: -20℃～+70℃ Storage temperature: -30℃～+80℃
Size: 115mm*78mm*38mm Bracket: Suction bracket
Wireless camera:
Image sensor: 1/3'' CMOS
Car: Bus, truck, trailer Resolution: 600TV Lines
Light Sensor, 5PCS LED turn on automatically in darkness with parking guide line
Waterproof: IP69K Lens angle: 120 wide angle
Emission power: 24DBm 2.4G transmission distance: 50M in open area
2.4G frequency point: 2370 ~ 2510 MHzMHZ
Power supply: DC12~24V Power consumption: ＜3W
Working temperature: -20℃～+70℃ Storage temperature: -30℃～+80℃
Size: 65mm*58mm*43mm (EU and Global market)
210mm*43mm*43mm (USA type bracket)
