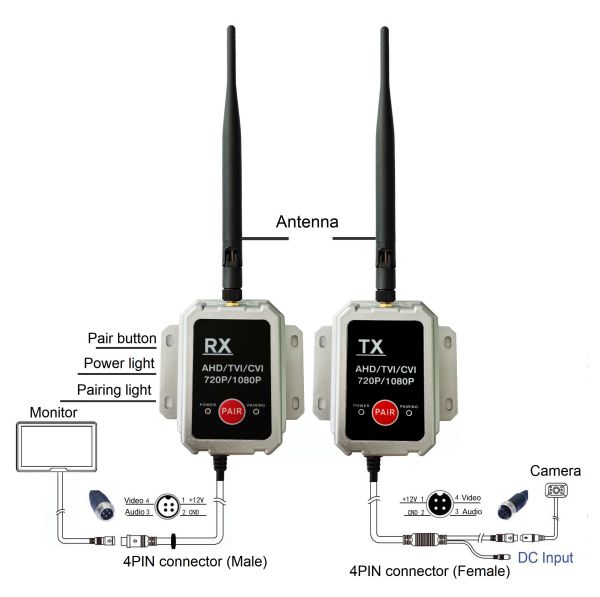

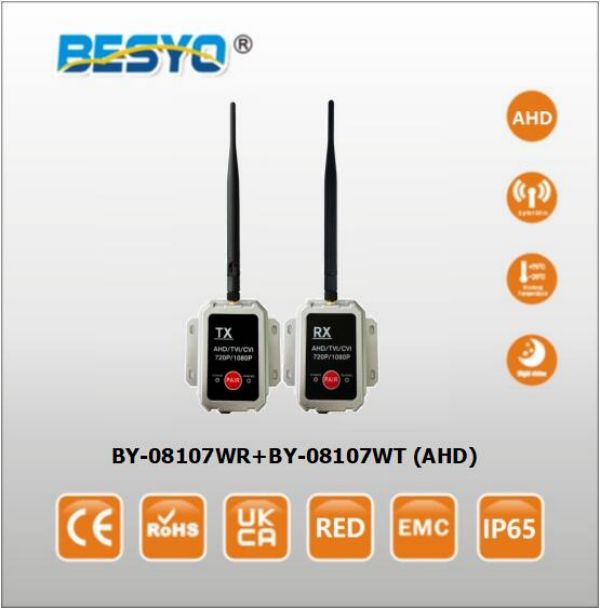

AHD wireless receiver and wireless transmitter:
Resolution :1080P, 720P
RF transmission bandwidth: 12Mbps
Transmission distance: Over 1500m
Working frequency range: 2400~2483.5 μΗ Z
Weight: 500G
Modulation mode: QPSK/16QAM
Standard: NTSC or PAL
Waterproof: IP65
Transmit Power: 20dBm with Power control
Operating temperature -20-+80℃
Power supply voltage: 12-36V
Boot time: 3S
TX current consumption: 200Ma
RX current consumption: 200Ma
Working humidity: 85%RH
Video compression mode: H.264
Delay time: 100ms Max
Resolution: 720P@30f/s/1080P@25f/s
