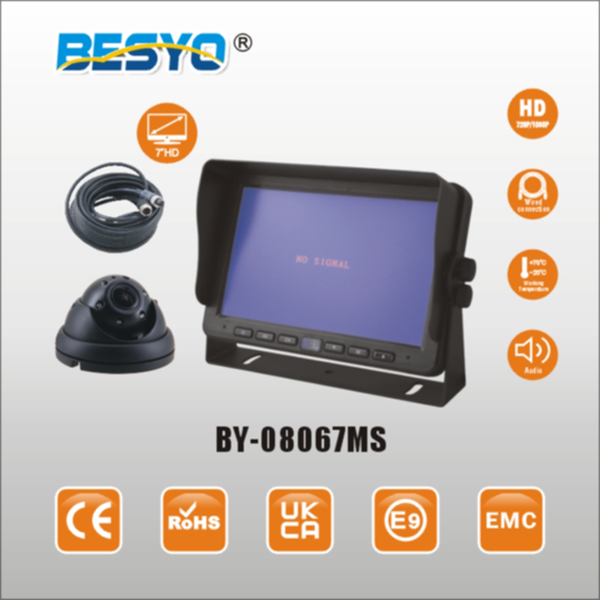

7'' Monitor and Camera System:

Monitor:

Resolution: 800*R.G.B*480

Aspect ratio: 16:9 image

Volts: 12/24V

Monitor IP rating: IP54

Mirror function: Yes

Contrast: 500:1

Colour encoding: PAL/NTSC

Audio function: Optional

Video inputs: 2/3/4 videos, 1 audio optional

Auto reverse switch cable: 2/3/4

Maximum number of cameras: 2/3/4

Connection Type: Wired

OSD menu, remote control

Working Temperature: -20℃ ~ +70℃

Camera:

Sensor: CMOS

Resolution: PAL: 733(H)*493(V), NTSC:733(H)*493(V)

TV line: 600

Lens: 2.5mm

Min illumination: 0.1Lux / F1.2

Gamma value: 0.45

Scanning frequency: 1/50~1/100000s,1/60~1/100000s

Night vision distance: 25ft

SNR(Signal to Noise Ratio): ＞52dB

Waterproof: IP69K

View angle: 120°

Power voltage: 12V

Operation temp: -20℃～+70℃

waterproof function

length selectable

Optional functions: AV connector, 4PIN connector, S terminal connector

Extended Cable:

5/10/15/20 meter extended cable

4PIN/AV male connector for camera

Waterproof function

Length selectable
