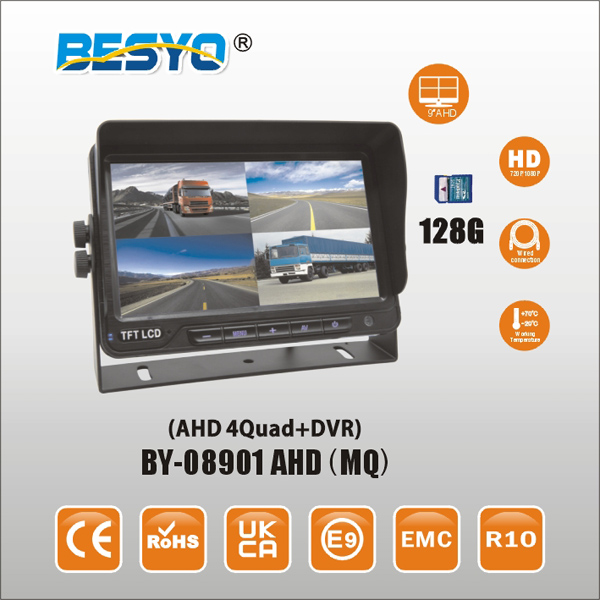

9'' AHD 4QUAD Split Monitor with DVR function:

AHD Monitor:

Resolution: 1024*R.G.B*600

Aspect ratio: 16:9 image

Volts: 12/24V

Monitor IP rating: IP54

Mirror function: Yes

Contrast: 500:1

Brightness: 450cd/㎡

Colour encoding: PAL/NTSC

Audio function: Optional

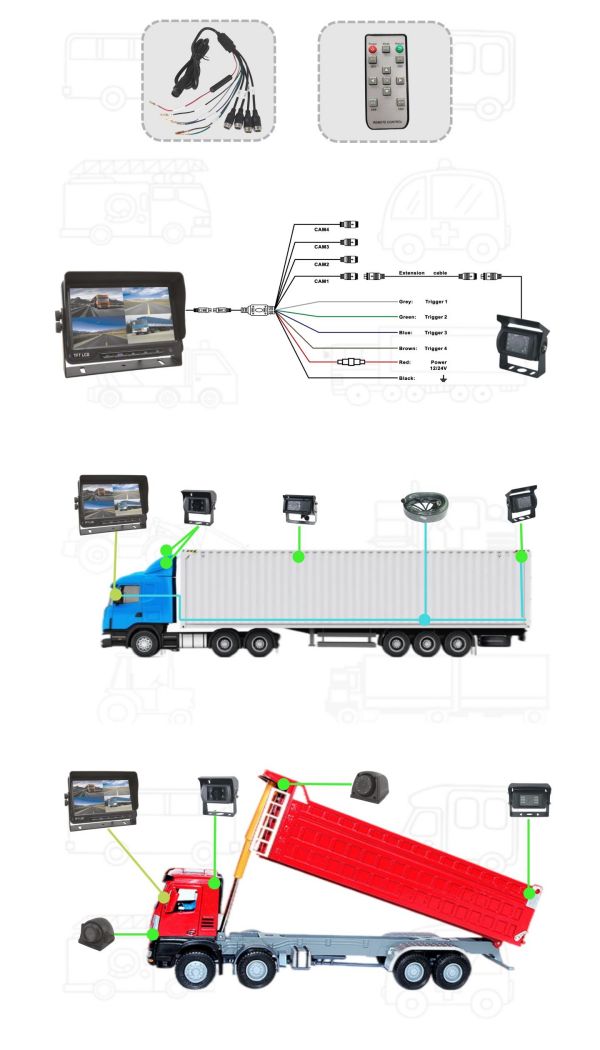

Video inputs: 4 videos, 1 audio optional

Connection Type: Wired

Auto reverse switch cable: 4

Maximum number of cameras: 4

OSD menu, remote control

Working Temperature: -20℃ ~ +70℃

Feature: Can connect AHD 720P/960P/1080P camera and analog camera compatible
