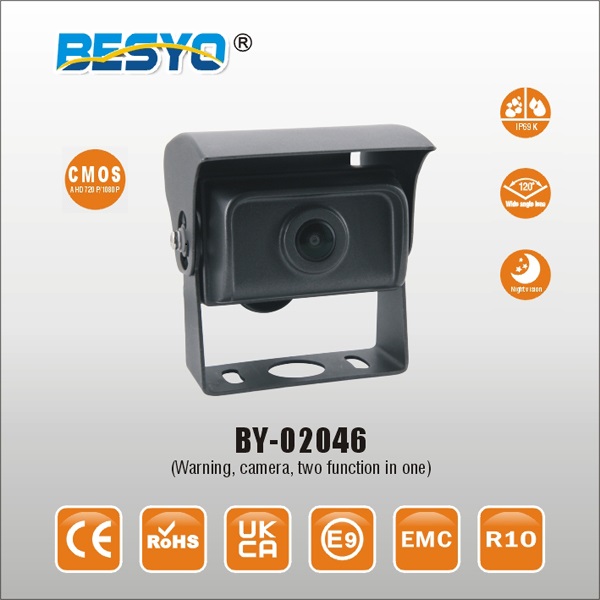

Millimeter Microwave Radar Camera, warning, camera, two function in one

BY-02046

Millimeter Microwave Radar Camera:
AHD1080P Camera:
Effective Pixels: 1920 (H)  x 1080 (V)
Pixel Size: 3.0 μm x 3.0 μm
Scanning System: Progressive Scanning
Sync. System: Internal
Resolution: 1080P
Video Output: 1.0Vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
Dynamic rang: 81dB
White Balance: Auto
Electronic Shutter: 1/30(1/25)~1/50,000 Seconds
BLC: Auto
Operating Temperature: –20℃ ~ 70℃
Storage Temperature: –40℃ ~ 80℃
Power Supply: DC12V
Waterproof rating: IP69K
Viewing Angle: 150°
Audio: Yes
Minimum Illumination: 0.1 Lux

Description

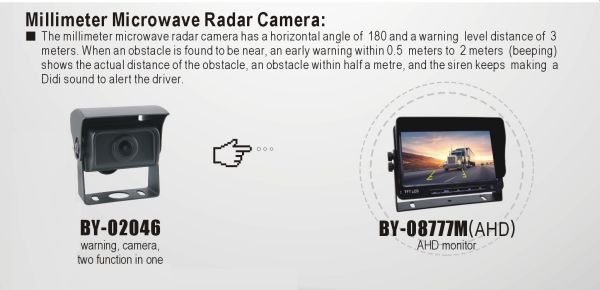

Millimeter Microwave Radar Camera:
AHD1080P Camera:
Image Device: 1/2.7”  CMOS
Frame Rate: 25 / 30
Effective Pixels: 1920 (H)  x 1080 (V)
Pixel Size: 3.0 μm x 3.0 μm
Scanning System: Progressive Scanning
Sync. System: Internal
Resolution: 1080P
Video Output: 1.0Vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
Dynamic rang: 81dB
White Balance: Auto
Electronic Shutter: 1/30(1/25)~1/50,000 Seconds
BLC: Auto
Operating Temperature: –20℃ ~ 70℃
Storage Temperature: –40℃ ~ 80℃
Power Supply: DC12V
Waterproof rating: IP69K
Viewing Angle: 150°
Audio: Yes
Minimum Illumination: 0.1 Lux
Image mode: Mirror
Detection distance: 3m
Range resolution: 0.01m
Frequency band: 10.4~10.6GHz
Ranging accuracy: better than 0.1m
