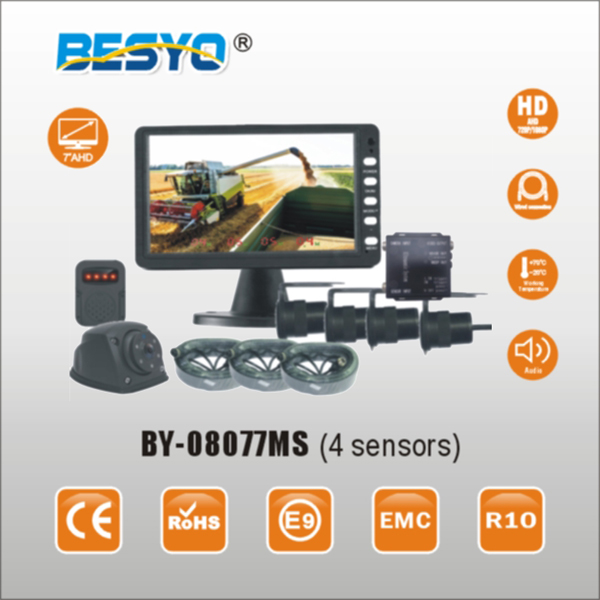

7'' monitor with parking sensor system

BY-08077MS (4 sensors)

Use human voice or buzzer.
Radar input: Digital radar sensor input.
Two camera input is supported.
It is designed with an aluminium alloy housing
Supports one video output
Special high sensitivity sensor, strong vibration resistance, low false alarm rate.
It's designed for the vehicle and supports a wide range of voltage inputs. Can work stably from DC12V/24V.

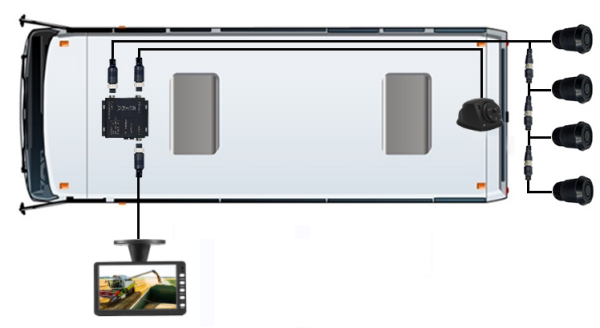

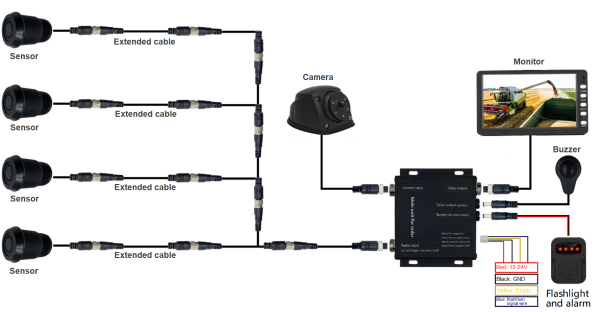

Adopts one-line bus transmission, 4/8 radar sensor, simple installation.
Adopts digital signal transmission, strong anti-interference, will not be interfered by the engine,
and the transmission distance is far, up to 5 meters.

Description
Radar system
7'' AHD monitor:
Volt: DC12/24V
Resolution: 1024 x R.G.B x 600
AHD waterproof camera:
Volt: DC12V
Resolution:AHD 720P

Waterproof rating: IP69K


Main unit:
Use human voice or buzzer.
Radar input: Digital radar sensor input.

One camera (CVBS/AHD) input is supported.


Sensor:
Hole diameter: 28mm
Anti-interference housing design
Detection Angle: About 70° ~ 100°

Detection distance: Up to 5 meters (large objects)


Metal sound and light alarms:
Beep beep alarm
Sound and light alarm integrated
15M 4PIN extened cable
