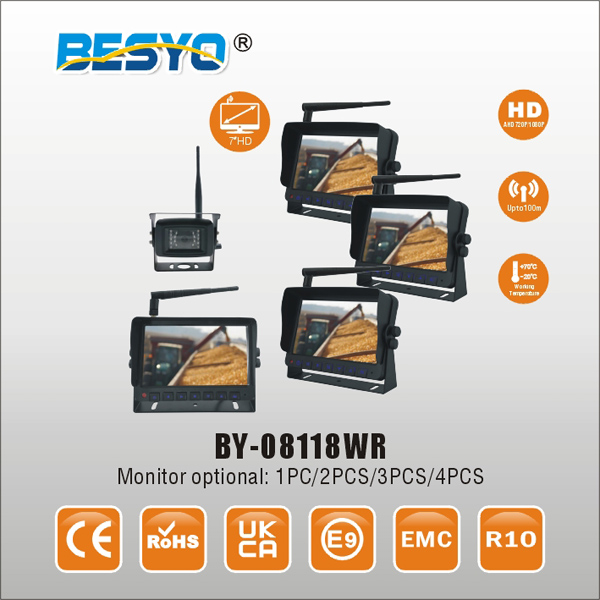

7''  2.4G Multi-monitor with 1PC wireless camera

Specification

Multi-Monitor-System:

Multi-monitor with digital wireless camera system.

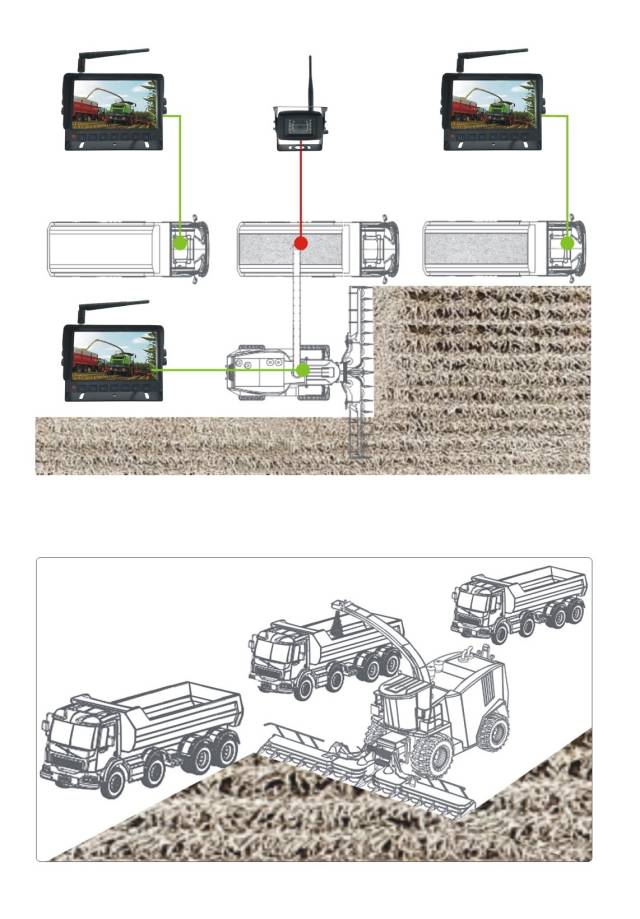

Apply to Farm Harvester Harvesting, Tractor Transport, Viewing Silos.

7" Digital Monitor Built-in 2.4GHz Digital Wireless Receiver, Graphical menu.

Multi-monitor automatically receives the same camera image.

Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.

2.4GHz Digital Wireless Camera: IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision.

Operating Voltage: DC12~24V.

Wireless monitor:

Resolution: 800*R.G.B*480

Audio function: Yes

Video inputs: 1 video

Maximum number of cameras: 1

Maximum number of cameras shown on screen: 1

Volts: 12/24V

Wireless range (in metre): 40M

Frequency: 2.4G Hz

Monitor IP rating: IP54

Mirror function: Yes

Fits SD card size: Maximum 128G

Contrast: 500:1

Brightness: 450cd/㎡

Colour encoding: PAL/NTSC

Working temperature:  -20℃ ~ +70℃

Monitor size: 177 x 122 x 30mm

Certification: CE, EMC, RoHS, R10, UKCA

Wireless camera:

Camera IP rating: IP69K

Camera type: CMOS

Resolution: PAL:976(H)*494(V), NTSC:976(H)*494(V)

Maximum number of monitors: 4

Volts: 12/24V

Night vision: 10m

Mirror function: No

Audio function: Yes

Shockproof: 10G

Viewing angle camera: 120°

Working temperature: -20℃ ~ +70℃

Camera size: 80 x 63.5 x 68mm

Certification: CE, EMC, RoHS, R10, UKCA
