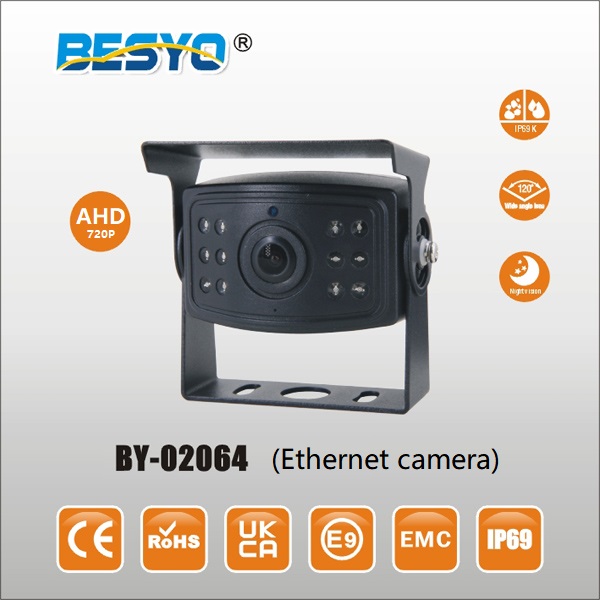

BY-02064 (Ethernet camera)

Ethernet camera:
​Viewing angle: 130°
     Working Voltage: DC12V
Night vision distance: 12~15m
Working temperature: -20℃ ~ +70℃
Storage temperature: -30℃ ~ +80℃
Minimum illumination: Color 0.05Lux@F1.2; Black 0.005Lux@F1.2
SNR:≥50db(AGC OFF)
Dynamic Range: Digital wide dynamic; ＞80db
Audio input: 1 audio MIC input
Audio output: 1 audio cable output
IO function: 1-way reset
Storage function: Nonsupport
WIFI function: Nonsupport
Video coding format: H.264
The main code stream: 1280*720, 1-30 frames per second
Substream: 640*360, 1-30 frames per second
Video compression bit rate: 128Kbps-8192bps continuously adjustable
Characters overlap: Supports adjustable superposition of channel name, date and time, and four groups of characters
Alarm data transmission: Browser, management software, IO output
Support agreement: Standard ONVIF2.6 protocol, full Netcom protocol

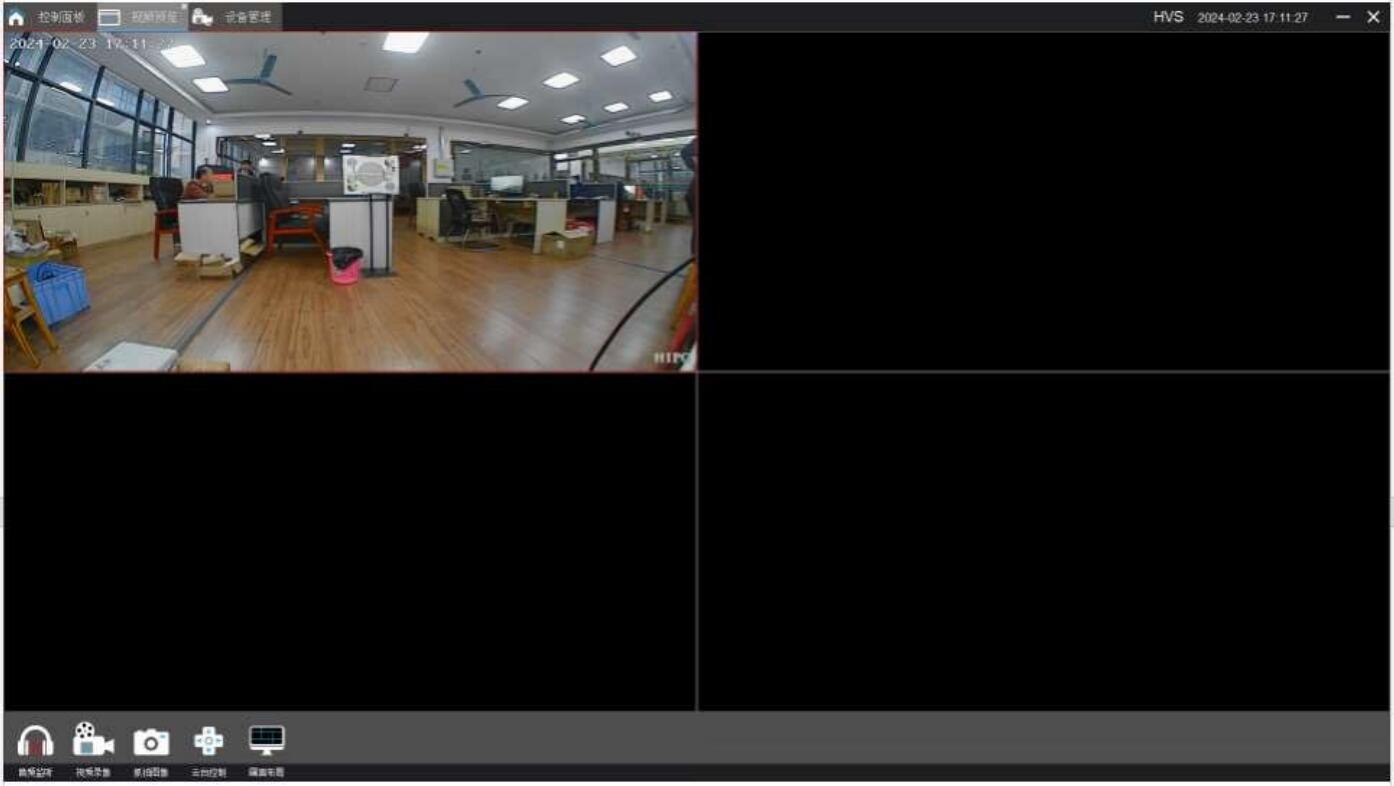

Client browsing: Support Internet Explorer 6.0 or later browser browsing, client browsing

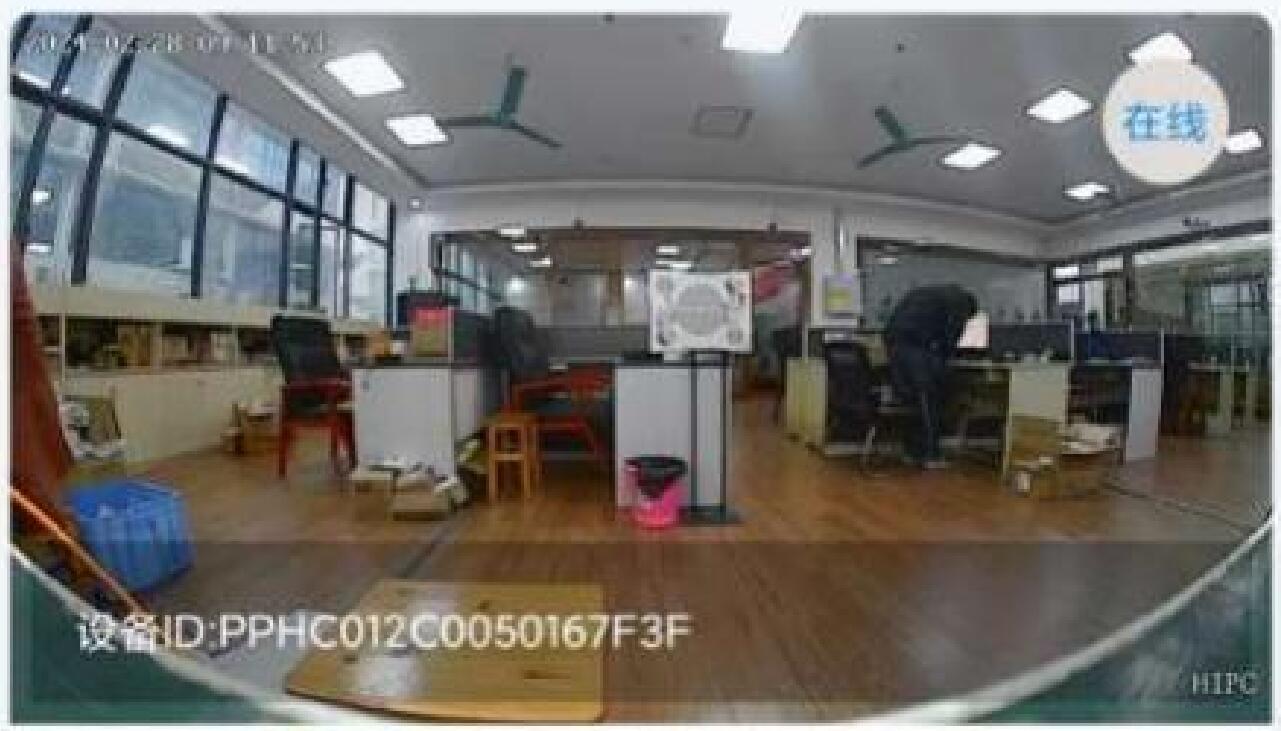

Mobile phone client: Android iOS /Android iOS Mobile Web.
