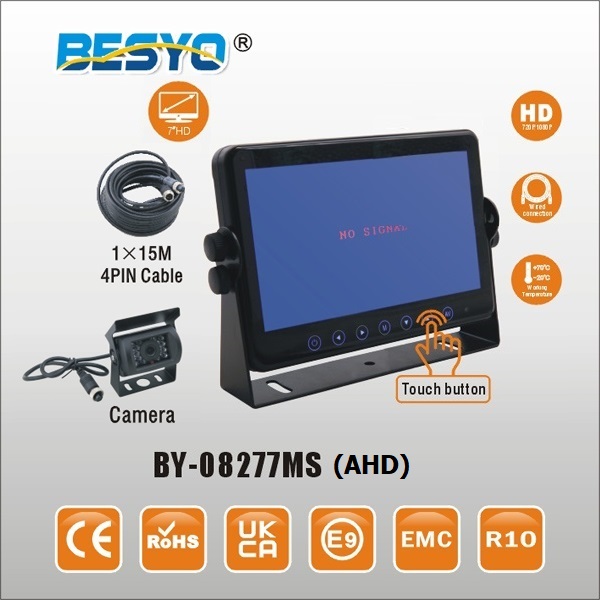

7'' AHD Touch Button Monitor and Camera System

(Tablet monitor):

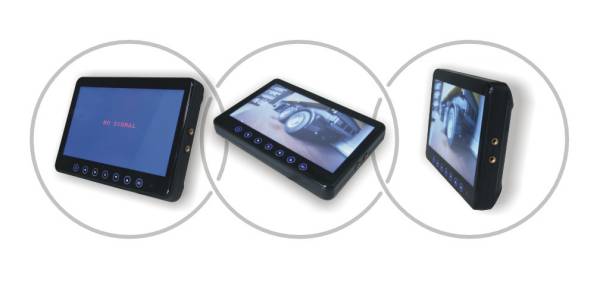

AHD Monitor:

Resolution: 1024*R.G.B*600

Aspect ratio: 16:9 image

Touch Button: Yes

Volts: 12/24V

Monitor IP rating: IP54

Mirror function: Yes

Contrast: 500:1

Colour encoding: PAL/NTSC

Audio function: Optional

Video inputs: 4 videos, 1 audio optional

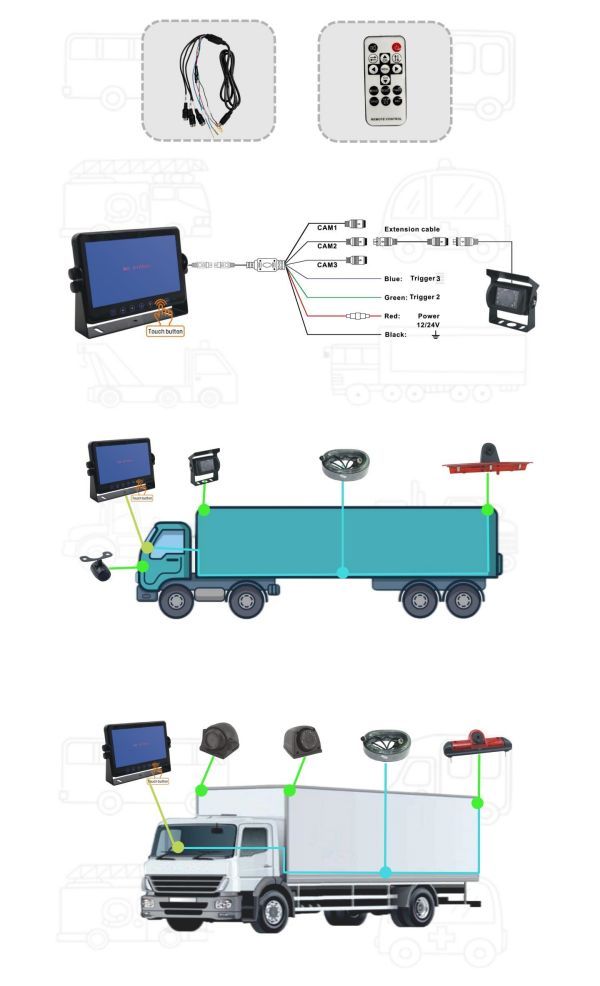

Auto reverse switch cable: 4

Maximum number of cameras: 4

Connection Type: Wired

OSD menu, remote control

Working Temperature: -20℃ ~ +70℃

AHD Camera:

Image Device: 1/2.9'' CMOS

Effective Pixels: 1280*720P

Power Supply: DC12V

Waterproof rating: IP69K

Viewing Angle: 130°

Night vision distance: 8~10m

Mirror function: Optional

Scanning frequency: 1/50~1/100000s,1/60~1/100000s

Night vision distance: 25ft

SNR(Signal to Noise Ratio): >52dB

length selectable

Optional functions: AV connector, 4PIN connector, S terminal connector

AHD Extended Cable:

5/10/15/20 meter extended cable

4PIN/AV male connector for camera

Waterproof function

Length selectable

Feature: Enhanced anti-interference performance
